High Efficiency B / WL Flat Face Impregnated Diamond Core Drill Bits Long Life

Brand Name : cge

Model Number : B/WL Flat face profile Casing shoe (75.31mm/60.2mm)

Certification : ISO9001

Place of Origin : China

MOQ : 2PCS

Price : Negotiation

Payment Terms : L/C, T/T, Western Union paypal

Supply Ability : 999+

Delivery Time : According to the order

Packaging Details : Wooden box/Carton box,customized

Use : Ensure inside wall is smooth and large enough for free passage of coring drilling string.

Standard : DCDMA standard/ Q standard

Advantage : Factory price, Wear Resistant, optimum penetration rates and bits life, High Performance Oem available

Service : OEM&ODM, (within 24hours)quick response, ODM, OEM, Customized

Name : B/WL Flat face Casing shoe impregnated diamond

Contact Now

High Efficiency B / WL Flat Face Impregnated Diamond Core Drill Bits Long Life

The diamond impregnated casing/rod shoe is the most commonly used as it has the widest range of application and is generally the most efficient tool for advancing casing/rod through overburden layers. We supplies casing and rod shoes with four waterway channels or multi waterway channels depending on the requirements.

We manufacture two types of Casing shoe: W-profile, Flat face profile, and can be customized .

Casing shoe and Rod shoe

B/WL Flat face pofile Casing shoe (75.31mm/60.2mm)

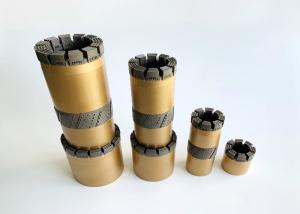

High Efficiency B / WL Flat Face Impregnated Diamond Core Drill Bits Long Life

Casing Shoe Sizes
Casing Shoe Sizes
DESCRIPTION	Outer Diameter		Inner Diameter
DESCRIPTION	Inch	mm	Inch	mm
AW	2.345	59.56	1.9	48.26
B/WL	2.965	75.31	2.37	60.2
N/WL	3.615	91.82	2.992	76
H/WL	4.625	117.48	3.925	99.7
HWT	4.625	117.48	3.925	99.7
P/WL	5.653	143.58	4.855	123.3
T2-56	2.205	56	1.85	47
T2-76	2.992	76	2.638	67
T2-86	3.385	86	2.823	71.7
T2-101	3.976	101	3.031	77
T6-101	3.976	101	3.445	87.5
T6-131	5.157	131	4.646	118

Rod Shoes Sizes
Rod Shoes Sizes
DESCRIPTION	Outer Diameter		Inner Diameter
DESCRIPTION	Inch	mm	Inch	mm
B/WL	2.345	59.56	1.78	45.21
N/WL	2.965	75.31	2.37	60.2
H/WL	3.615	91.82	2.992	76
P/WL	4.75	120.66	3.985	101.22
